We’re going to get a bit technical here but, it’s because we are spray equipment experts. We stay up late at night thinking of problems and how you’d have to deal with them when we design rigs for our clients spray equipment. Thankfully, we see a lot of terrible design ideas to teach us what NOT to do when they come in for help! This is a favorite – they did put thought into this tank actually, but they could have done better.

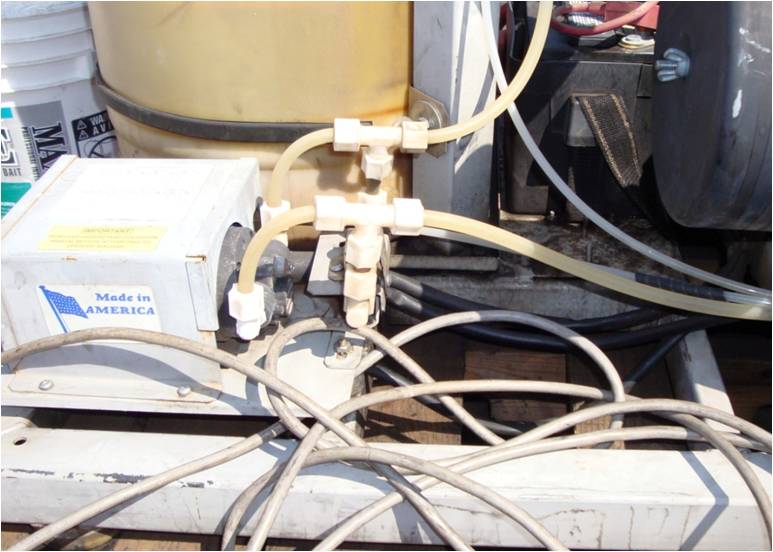

First, we suggest suction at the top or bottom of commercial lawn spray equipment tanks, toss out this middle of the tank nonsense, please! They did put on a shut off valve which is a step in the right direction but, it’s all connected to plastic, that is just waiting to dry up and break. The heat of the summer sun will do a number on that plastic and with one crank it could all snap!
On to the main topic though, the pump! In this picture we can see they decided to use their pressure relief line as an agitator into the main tank. You can’t put a shut off valve on that or it will blow up when you release the trigger. So, what happens when you have to service this pump? You have to dump your tank because it’s going to drain to the lowest point! It’s water, it finds level.
We recommend pressure relief on the top of tanks because water can’t drain up. Agitation at the bottom where you can place a shut off valve. Our whole point is good design will save you time, save you money and increase profitability.
Andrew Greess: Here's another one. Oh, this is amazing. I can do an hour on this photo alone. Let's look. A couple of things. Here's another one. Tanks have suction either at the top or the bottom. Some people like top suction, some people like bottom suction. I like bottom, but there's pros and cons to both.
This is middle tank suction. There's nothing good about this, but it's the same thing. It's all plastic. They do have a shut‑off valve right here, but it's all plastic. If you go to turn this shut‑off...See the shut‑off valve? There's the yellow handle. You go to turn this shut‑off valve, you're going to snap some of this plastic. That's not even what I want to talk about.
Most of the pumps that we use are what's called positive displacement pump, which means, when you let go of the trigger, the water goes back into the tank through the pressure relief valve. You guys familiar with what I'm talking about?
You can't put a shut‑off valve on that pressure relief line because, if you did, when you let go of its spray trigger, it's going to blow up. You have to have that pressure vent back into the tank. What this company did was, they put that pressure relief line into the bottom of the tank and put a jet agitation on it.
They're trying to be clever, trying to save a little money, "We're gonna use our return as agitation." What that means is you can't put a shut‑off valve on this line. Because you can't put a shut off valve in this line, what that means is you can't service this pump when the tank is full.
If you take the pump off or disconnect the pump, 50 gallons are going to drain right out of there because there's no shut‑off valve. Does that make sense? It's a little technical, but it's really important.
To save a few dollars on agitation, instead of doing agitation right...The way you would do this right would be you'd have the pressure relief go into the top of the tank. You don't need a shut‑off because it's not going to drain up.
Then you have agitation at the bottom of tank, and you can put a shut‑off valve on agitation because you still have pressure relief in the top. It's a little technical, but it's really important. Anyone following what I'm saying here? This is stuff people don't look at. That's an important one because when is your pump going to need service?
Your pump doesn't need service when you're not using it. You need service when your tank is full, and you're using it. You have two options here. You can either dump 50 gallons or you can keep using your pump even though it needs service, which means you're going to probably do more damage to it. Really bad design.
When I talk about good design, what do I mean? Here's a sprayer we built. Had three tanks, three pumps, three motors and four house reels. We want to be able to get to...See all these pumps and motors? They're raised so you can change the oil, and they're all easy to get to.
They're all easy for service. You want to make sure your stuff is easy for service, and they're also easy to start. Really good design.
If you missed any of the videos in this series, catch up on them here:
Experience Pays: Top 10 Avoidable Spray Equipment Problems And Ways To Avoid Them https://goo.gl/NRB4qj
Choosing the Right Spray Equipment Engines, Backpacks, Pumps and Trailers https://goo.gl/r7L8zJ
Spray Fittings and Tanks - The Right Small Spray Equipment Components Matter Too https://goo.gl/kCk1qo
Oh The Hose Reel Problems We’ve Seen! https://goo.gl/fHBFhZ
Cut Out Design Flaws and Down Time with Better Spray Equipment Design https://goo.gl/r44m22
Common Sense Missing in Some Backpack Sprayers https://goo.gl/8Vixub
Avoid Problems By Consulting Experts in Their Field https://goo.gl/UuA422
Bad Design = More Work And Money in Repairs https://goo.gl/a2Yt6z
Need Easy Access to Spray Equipment Filters https://goo.gl/8Jm1Hf
For more information on Andrew Greess, visit https://www.qspray.com/
We touched on this topic in our sixth video in this seminar, the importance of filter placement. We have a few other videos covering the same idea with different equipment parts. It’s clearly something we can’t stress enough – DESIGN MATTERS! Think through all your steps: How will I clean this?, How will we repair this? [...]
Pest Control Equipment - Don't Wait for ProblemsOur pest control equipment repair shop sees all sort of problems, every day.The pest equipment issues that really surprise me are the ones that are totally avoidable. So many big problems can be avoided if the problem was dealt with when it was small. Check out this short spray equipment tips [...]
We can't say for sure that every time a rig with properly installed equipment is going to make it through an accident without coming unattached or leaking. But we can say that it's happened and that it gives your rig and equipment a better than average chance. It's basic logic, installed properly equipment will stay put. Now there are [...]
In this video seminar Andrew Greess gives and shows us real examples of incidents that have happened to people in the pest control and landscaping industries. There are some are tips for the employees as well as some for the employer. Depending on the equipment you use some of the information might not pertain to you directly but overall there [...]
This is the first post in a series that shows a seminar given by Andrew Greess of Qspray.com. We’ve broken down the entire seminar into smaller segments. Over the years, Greess and the Quality Equipment & Spray team has seen a lot of interesting things come up through the repair and purchasing of pest control and landscaping equipment in the [...]

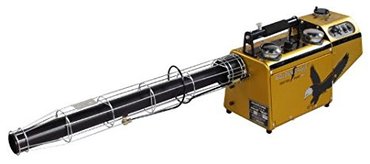

The Curtis Dynafog Golden Eagle Thermal Fogger is top of the line. This fogger is for professional use and made in the U.S.A with quality parts. The Golden Eagle is worth the investment because it does high volume with great efficiency. It's thermal element is unlike most foggers on the market. The fog is heated which creates smaller droplets, [...]

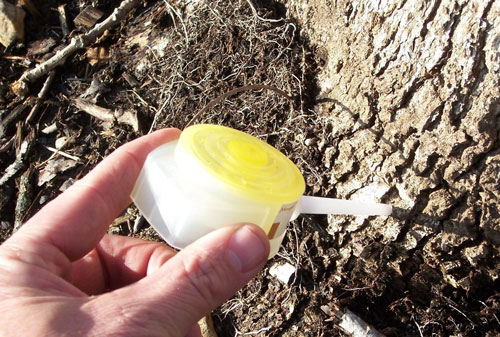

Tim Johnson, a second-Generation arborist recommends and uses Mauget Inject-a-min Iron Zinc when trees have a chlorotic problem. Even trees sometimes need a "vitamin boost" when the soil they are living in isn't ideal. When trees show signs of Chlorosis, which is often noted by leaves with dark veins and yellow or mottled tissue between the veins or stunted leaf growth, [...]
At Qspray, we know our power spray equipment. We sell it, we service it, so we designed a rig that fulfills our checklist for top of the line power sprayer rigs. Being in the industry, we've learned a few things and we put that knowledge to good use. First things first, we use quality parts. To us, using brass fittings is [...]

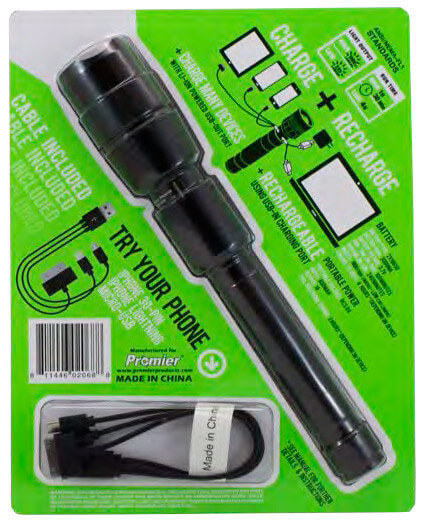

A personal favorite, the Lumen 1000 Rechargeable Flashlight easily won this status with a few of its wonderful features. First it's BRIGHT, at 1000 lumens looking directly at it is not recommended as it will blind you for a few seconds. Use it at 1000 lumens for 1.5 hours or lower it to 285 for 4 hours of [...]
