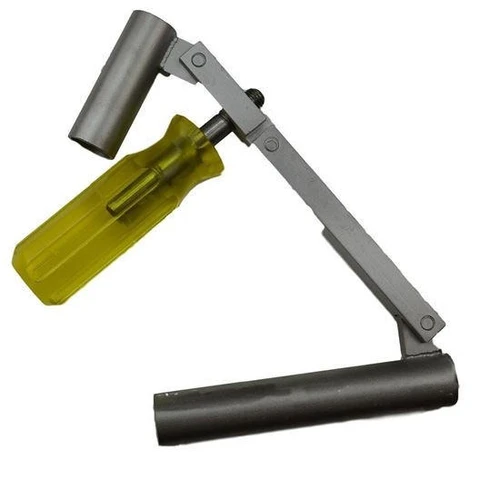

B&G 500 Lock Sleeve for SSI-14 Sub Slab Injector (22065500)

B&G 500 Lock Sleeve for SSI-14 Sub Slab Injector (22065500)

The genuine B&G lock sleeve for the SSI-14 Sub Slab Injector, the tool termite professionals use to deliver termiticide to voids beneath concrete slabs and other suspended floors through drilled holes. It's item #16 on B&G's SSI parts diagram and is part of the injector's shaft assembly. Replace it if it's worn, cracked or no longer locks securely.

Check your model. This 500 lock sleeve is for the SSI-14. The SSI-4 uses the 400 lock sleeve.

Specifications

B&G SSI Parts We Carry

Frequently Asked Questions

What size hole should I drill?
B&G specifies a 9/16" or larger hole for treating beneath concrete slabs. Smaller holes will damage the injection pipe and the expansion ring gasket.

What pressure should I use?
B&G recommends using the tool at low pressure, about 25 PSI. Its 360° and 180° tips are rated at 2 GPM at 20 PSI. Always follow the termiticide label.

My injector is leaking. What do I check?
Per B&G's troubleshooting guide: a leak where the trigger attaches to the valve means replacing both o-rings on the valve rod. A leak at the pipe connection to the valve means tightening the seat gasket holder with a hex wrench or replacing the seat gasket. A leak at the connection to the extension pipe means replacing the expansion ring gasket.

Downloads

Download B&G Sub Slab Injector (SSI) User's Manual & Parts Diagram
