Product Description

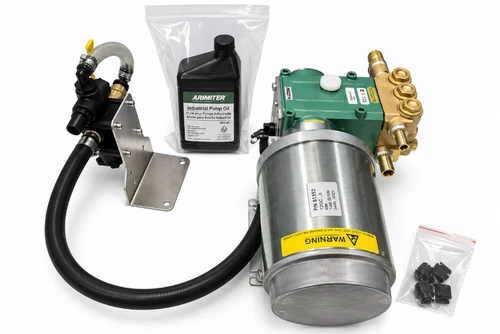

Pumptec 82039 308L/M960 12V Pump & Motor with Regulator and Bracket
Gas engine performance in a 12-volt package. The Pumptec 308 plunger pump with a 3/4 HP M960 motor delivers 4.5 GPM at 175 PSI, enough for about 30 feet of vertical spray to reach eaves and 50 feet of horizontal reach. It runs extremely quietly, so technicians can start earlier and work later without disturbing customers. It comes with an adjustable regulator and mounting bracket.
Replacing an X-6 pump? This unit replaces the X-6.
Specifications
| Model | Pumptec 82039 (308L pump / M960 motor) |
| Rated Performance | 4.5 GPM at 175 PSI |
| Max Pressure / Open Flow | 200 PSI / 5.0 GPM |
| Motor | 3/4 HP, 12V DC |
| Current Draw | 72 amps |
| Body | Forged brass |
| Plungers | Ceramic |
| Valves / Seals | Plastic body / NBR |
| Gauge | Liquid-filled |
| Inlet Ports | (2) 1/2" female NPT |
| Discharge Ports | (2) 3/8" female NPT |
| Max Fluid Temperature | 140°F |
| Size | 14" x 8" x 7.5" |
Features
- Gas engine performance with no engine noise, fumes, or fuel
- About 30 ft vertical and 50 ft horizontal spray reach
- Extremely quiet operation for early-morning and evening jobs
- Service-friendly design
- Adjustable regulator and mounting bracket included
Important: Electrical Requirements
The M960 motor draws up to 72 amps, far more than a typical 12V sprayer pump. Use heavy-gauge battery cable sized for your run length, a properly rated fuse or breaker, and a battery and charging system that can support the load. See the installation instructions, or contact us if you have questions about wiring your rig.
IMPORTANT: We do not accept returns or exchanges on Pumptec pumps that have been installed. This ensures every pump we ship is brand new and fully covered by the manufacturer's warranty.
Downloads & Support
Download Pumptec 82039 Parts Breakdown
Download Pumptec 308/M960 Product Info Sheet
